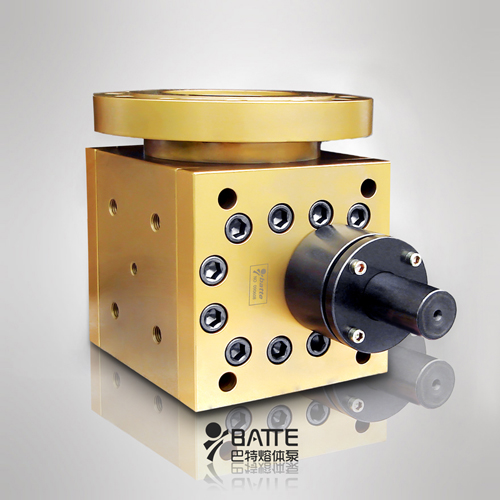

ZB-K系列釜底泵主要用于輸送真空反應器中的中高粘度的介質，吸入口大法蘭設計，在真空條件下能使高粘度介質順利吸入。主要應用于ABS、PS、PC、PET、SAN、PP、PE Bioploymers等介質。

　　技術參數(shù)：

　　泵體：不銹鋼，碳鋼，哈氏合金，蒙乃爾合金

　　齒輪：工具鋼，滲氨鋼，特種材料及涂層，齒形為直齒，斜齒或人字齒

　　滑動軸承：工具鋼，鈦鉭合金，銀鎳合金，特種材料及涂層

　　軸封：機械密封，填料+螺旋密封，帶沖洗液的組合密封

　　加熱系統(tǒng)：電加熱

　　規(guī)格/流量范圍：0.5CC-12000CC

　　操作參數(shù)：

　　粘度：≤40000Pa.s

　　工作溫度：≤400℃(750°F)

　　清洗溫度：≤450℃(850°F)

　　進口壓力：真空--1.5MPa

　　出口壓差：≤40MPa

　　ZB-K series bottoms pump is mainly used to transport vacuum reactor high-viscosity media, the inlet Dharma Blue design, enabling high-viscosity media smoothly under vacuum suction. Mainly used in ABS, PS, PC, PET, SAN, PP, PE Bioploymers other media.

　　Technical Parameters:

　　Pump body: stainless steel, carbon steel, Hastelloy, Monel

　　Gear: tool steel, ammonia seepage steel, special materials and coatings, tooth straight teeth, Helical or herringbone

　　Bearing: tool steel, titanium, tantalum alloy, silver-nickel alloys, special materials and coatings

　　Shaft seal: mechanical seals, packing + spiral seal with a combination of flushing liquid seal

　　Heating system: electric heating

　　Specifications / flow range: 0.5CC-12000CC

　　Operating parameters:

　　Viscosity: ≤40000Pa.s

　　Working temperature: ≤400 ℃ (750 ° F)

　　Cleaning temperature: ≤450 ℃ (850 ° F)

　　Inlet pressure: Vacuum --1.5MPa

　　Outlet pressure: ≤40MPa
